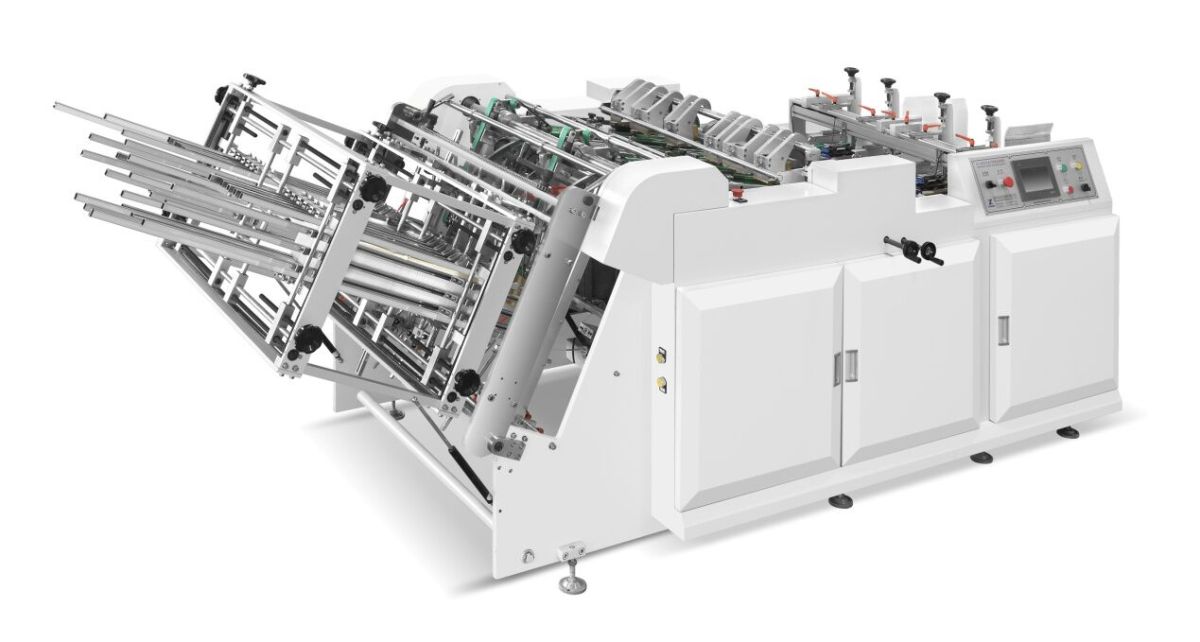

Carton Erecting Machine (paper box forming machine) is an automatic machine, specialized in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.
The food box (carton, container, dish, tray) is widely used as burger box, hot-dog box (tray), one block box, food pail box (Chinese food box, take-away box), fries box (chips box, chips tray), lunch box, meal box, etc.
Advantage:
1. Servo motor control the forming mold (press mold) (advanced, more accurate than mechanism cam control)
2. Using full servo system (4 servos in machine replace cam system)
3. Easy exchange molds to make different products, charging and adjusting time is very short.
4. PLC program control the whole line, available to make complicated boxes.
5. Automatic collection, stock, and count.
6. Human being designed control button and panel, more easy and safe runs by user.
7. PLC could save the adjusted parameter after you finish adjustment, it will help you save time.

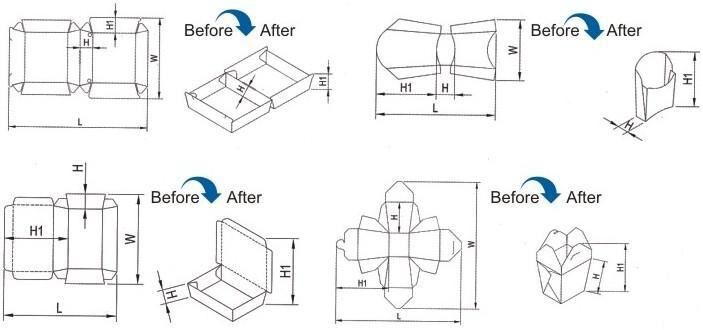

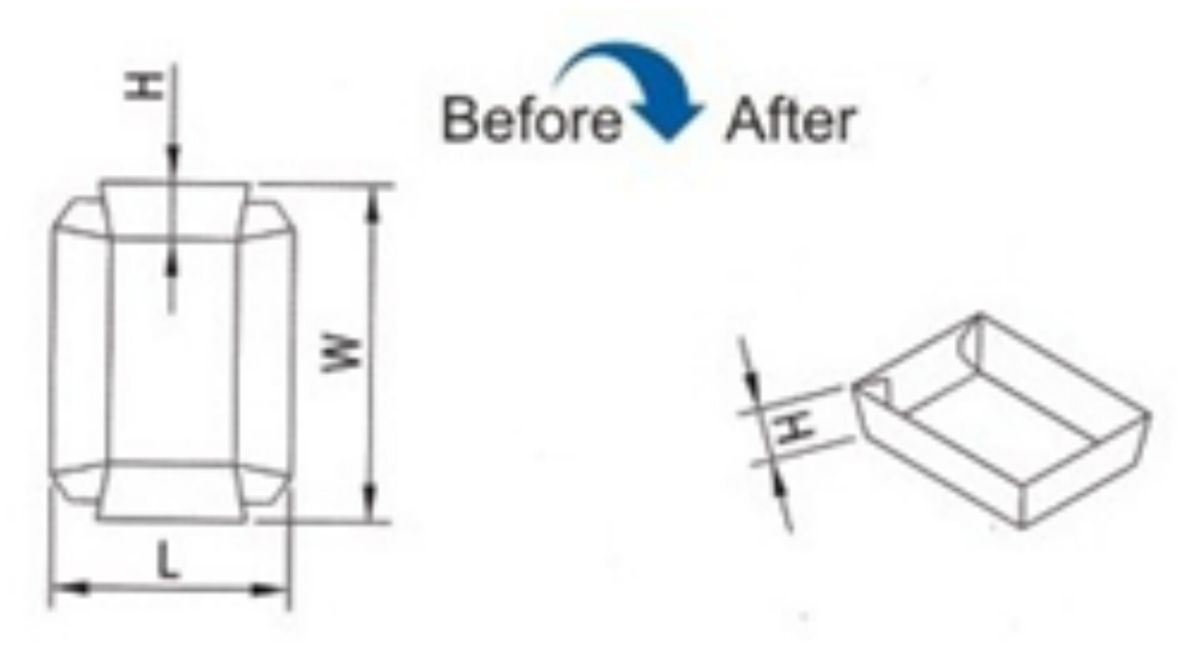

Deep paper food box (paper food pail )

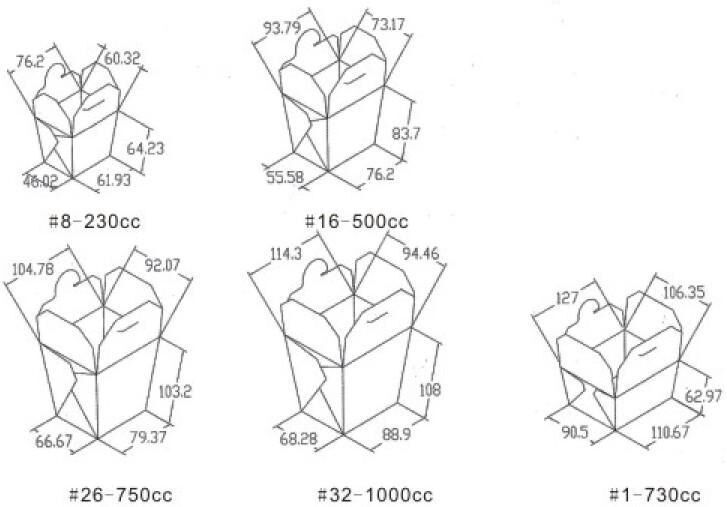

Take Away Box, Food Box, Instant food box, Chinese Food Box, Food Pail
Remark:
The box size, box shape, material and its quality will affect the machine output.
Whole machine include:
Feeding device, Electric control box, Transfer System, Water glue device, Forming (welding) device, Collection device, One set of mold.

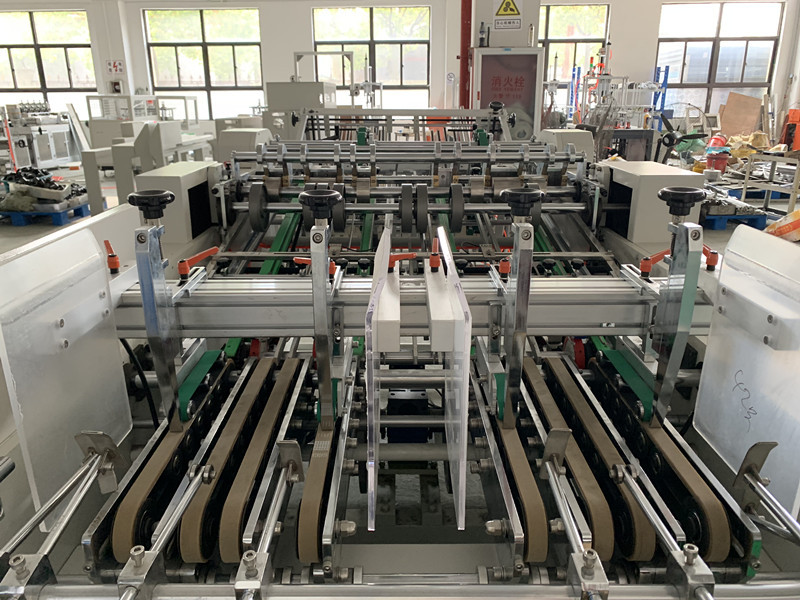

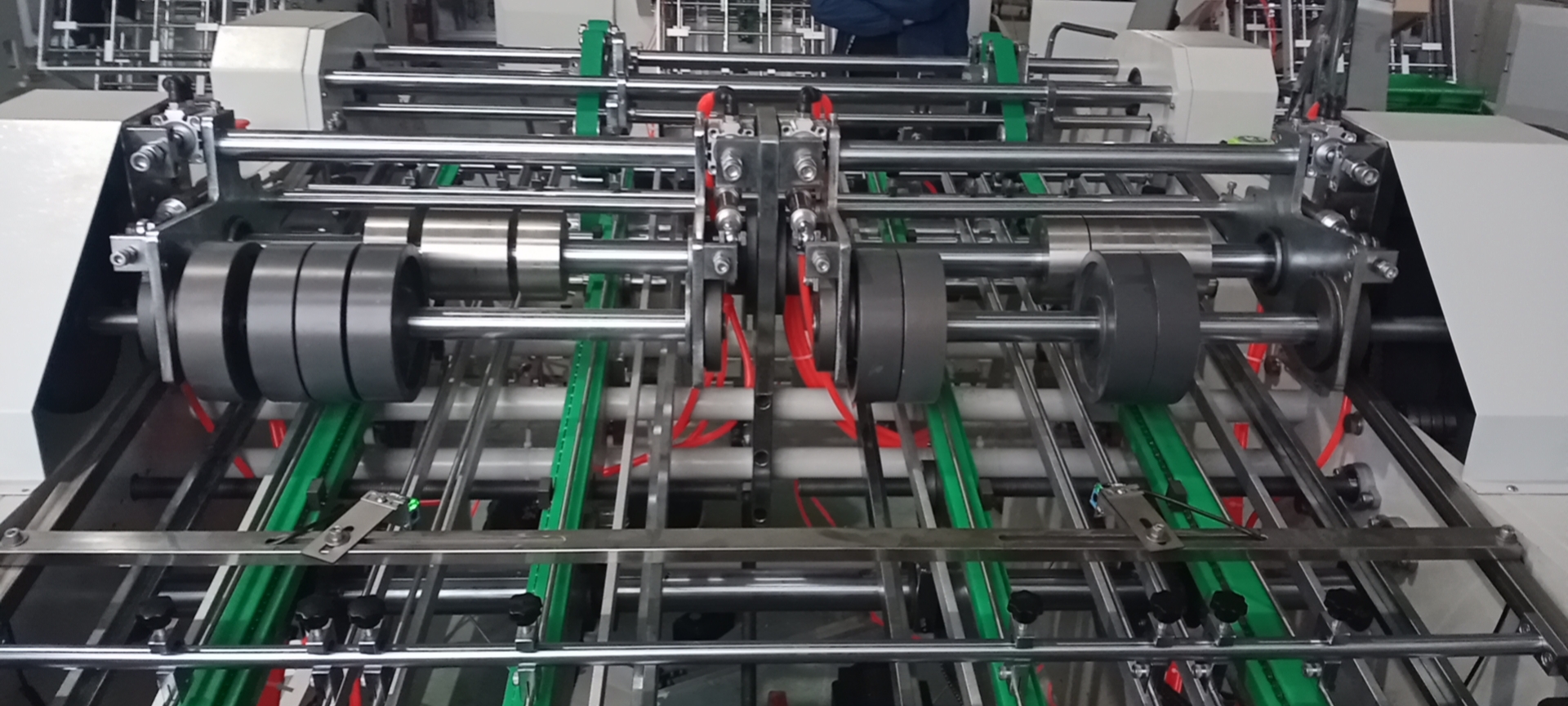

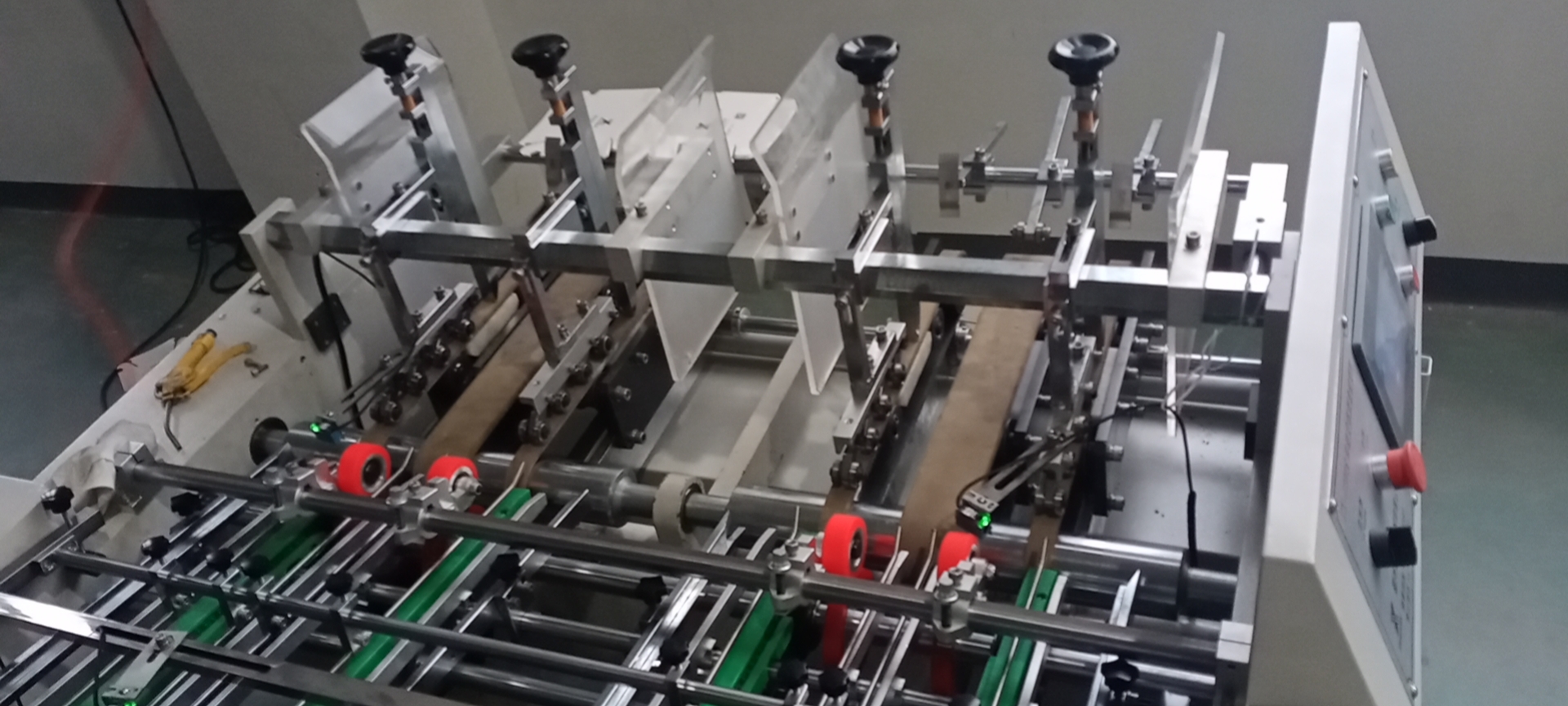

To adopt same structure as the folder glue machine, the paper will be delivered more smoothly. And hard aluminium material, much better and use imported belt, the machine will stop if the machine doesn’t delivery paper or the machine is not in a correct way, we are also using servo motor for feeding.

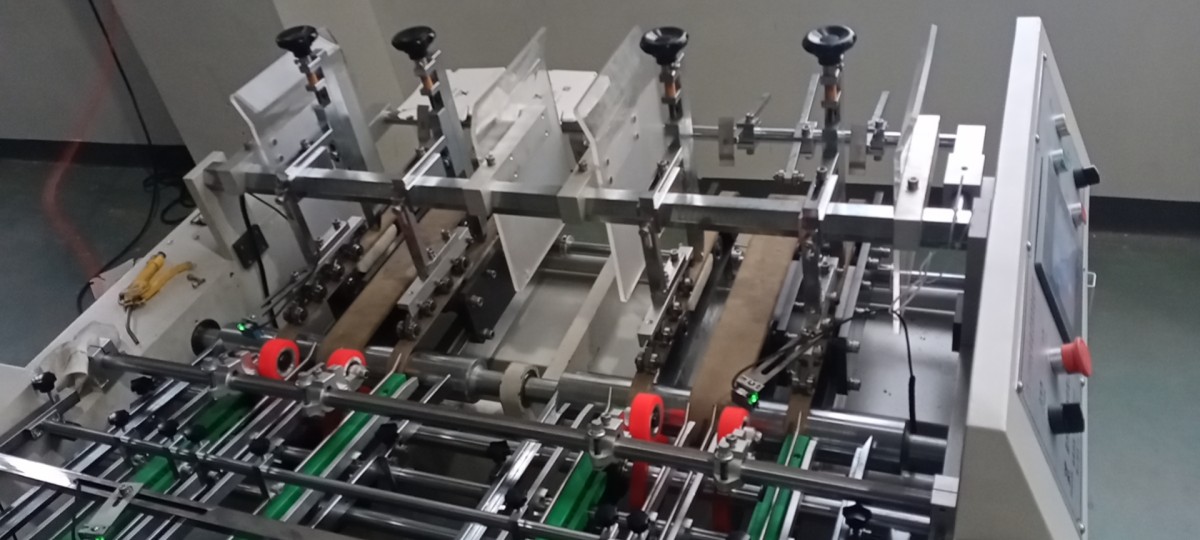

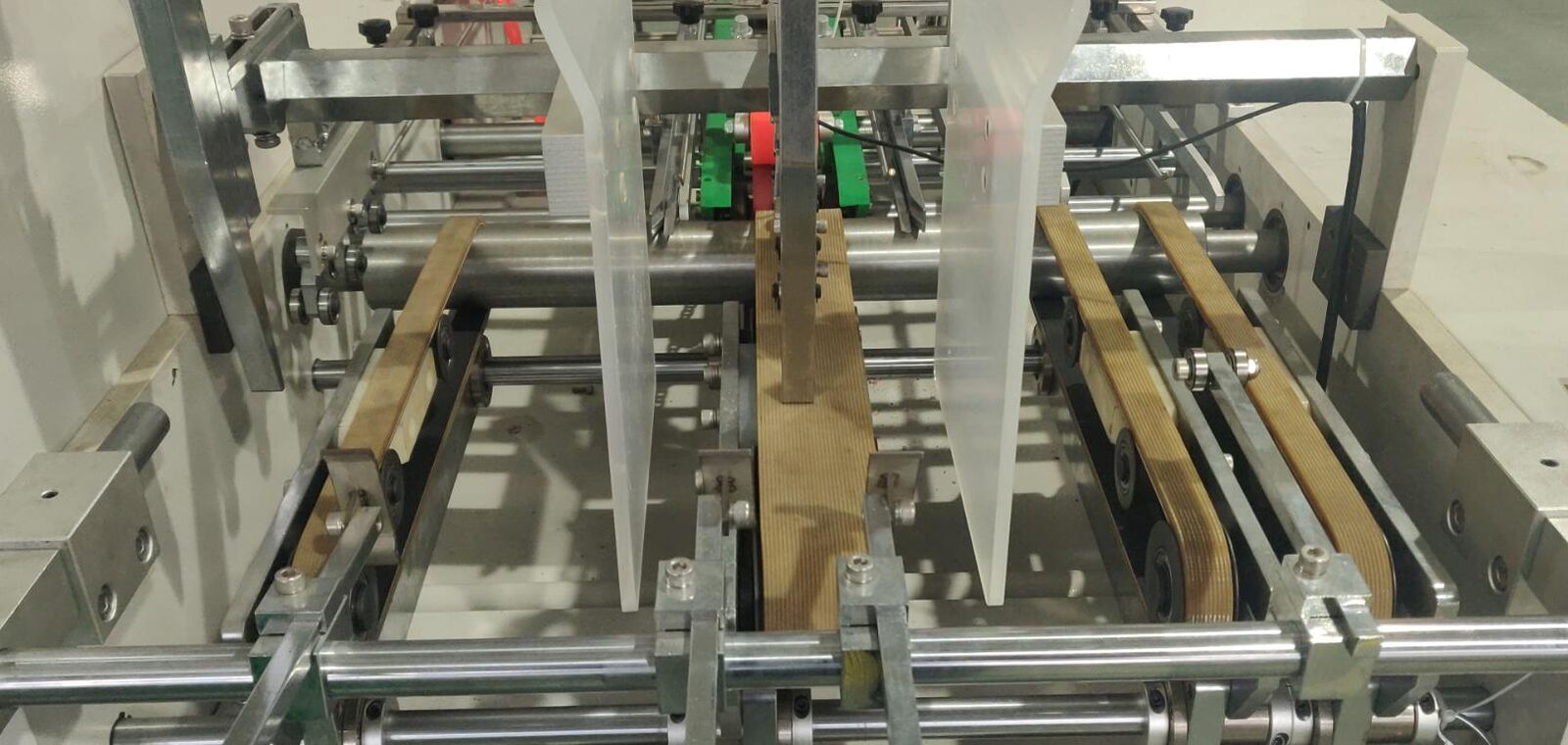

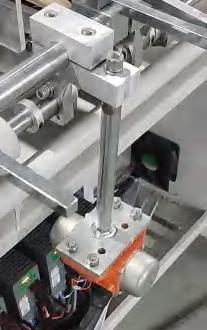

Paper feeding part, to install the vibrator, the quality of the output products will beincreased when feeding precision is high, and it can make paper feed more smoothly.

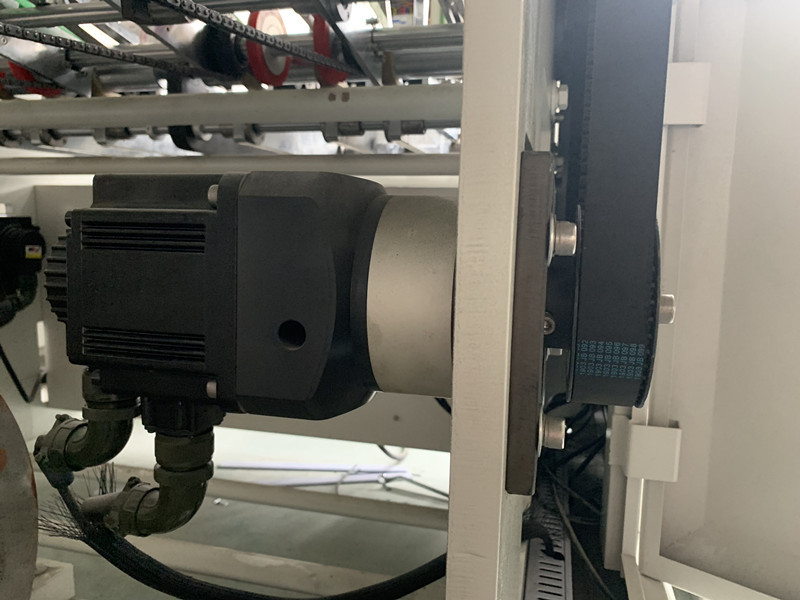

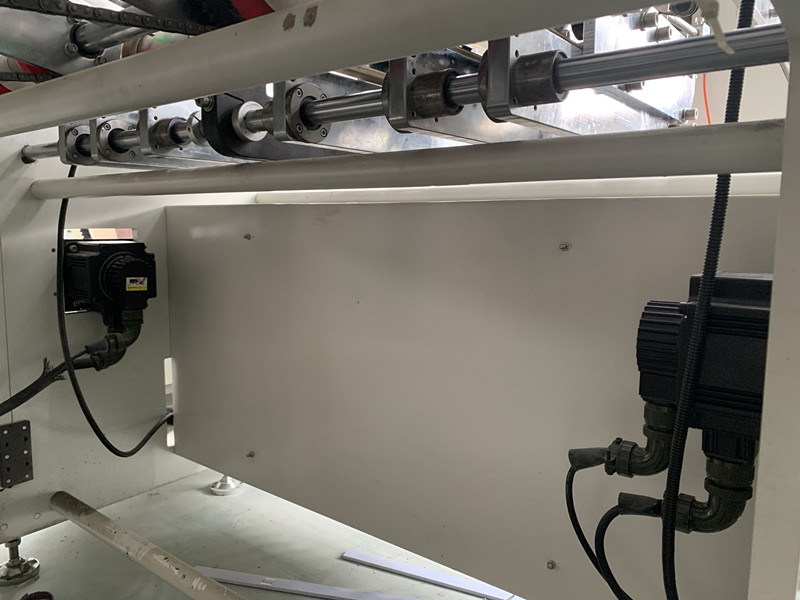

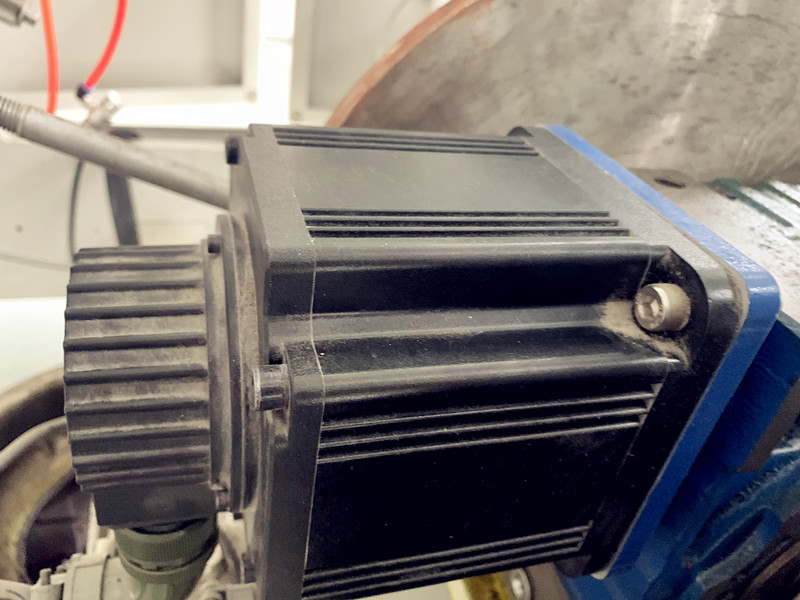

To use 4 servo system - two servo motors for paper feeding, one servo motor for paper sending, one servo motor for molding. The structure is much easier and it has less damageable parts with lower maintenance cost, you could do the most adjustments by Touch Screen Program PLC. If you only run the single lane, you could turn off the second lane, they are independently.

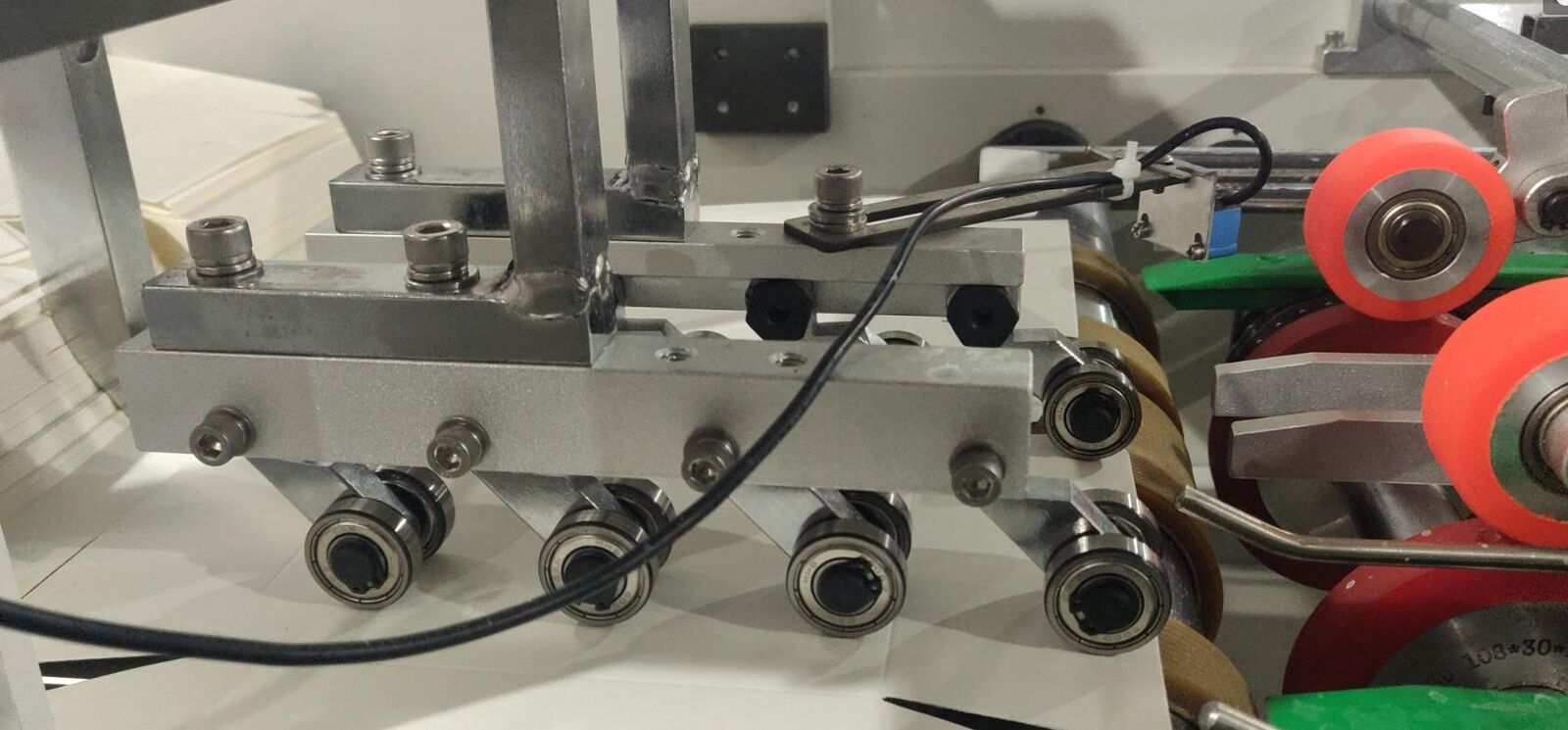

Independently Glue system

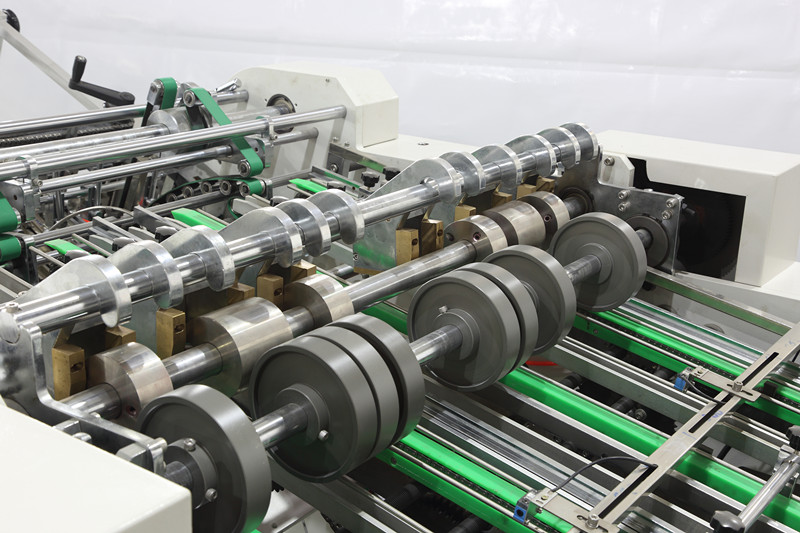

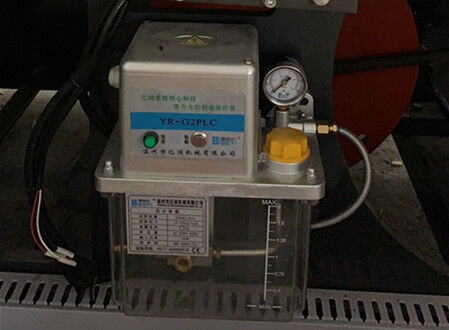

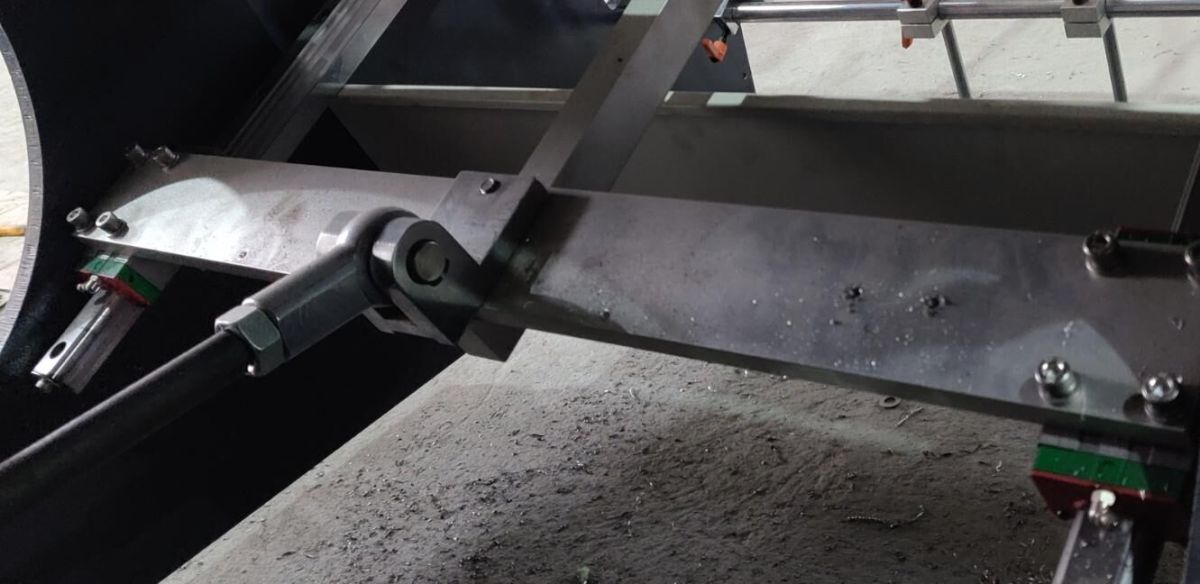

In the forming part, we have the lubrication system and use the two rails which can make the forming more stably and longer service life.
Machine use new structure, you could do changes faster than others, the collection unit could be open when you change the mould.

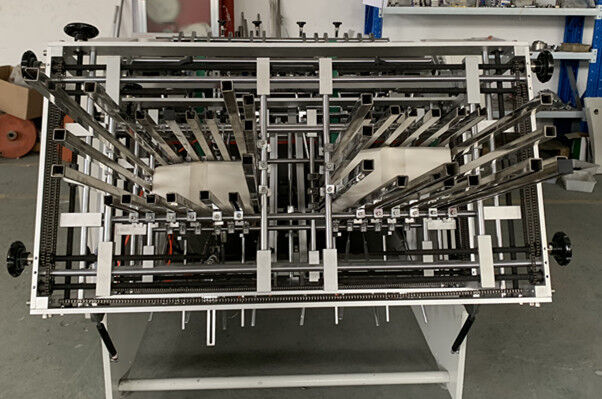

Independently 2 collection units
