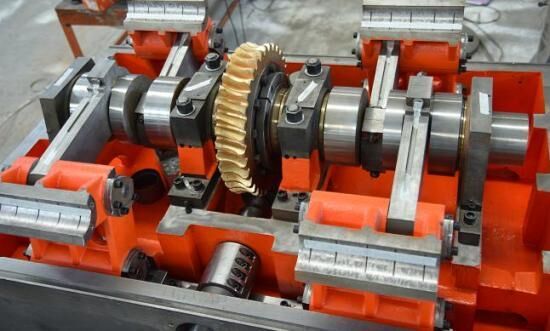

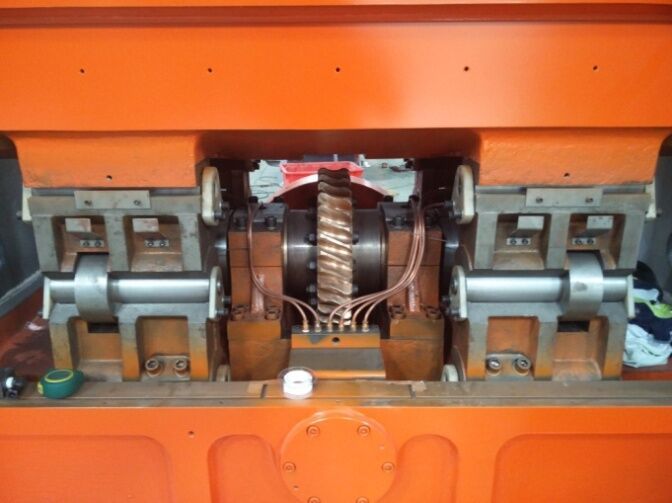

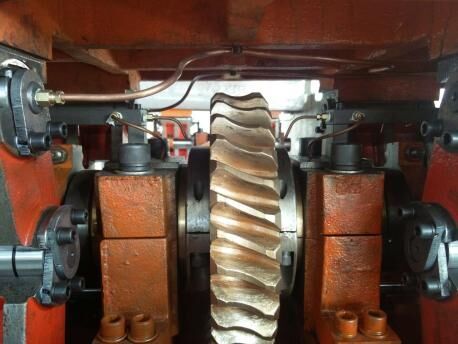

1. Worm Gear Structure: Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure.Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron QT500-7, which has featur high tensile strength, anti-deformation and anti-fatigable.

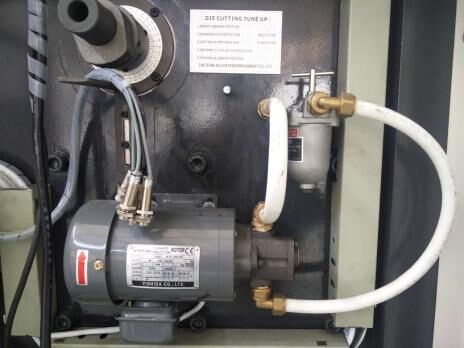

2. Lubrication System:  Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction  and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.

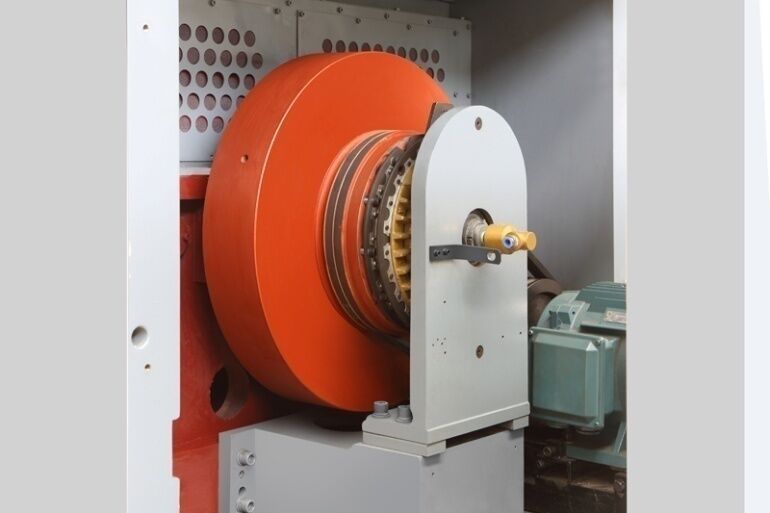

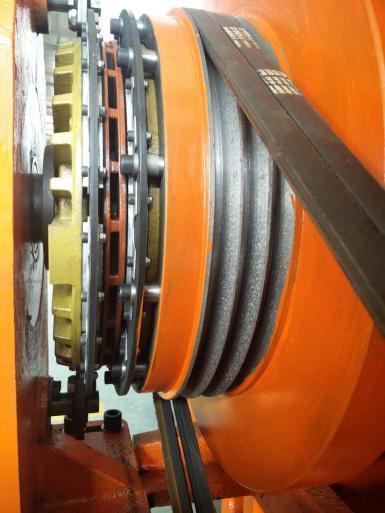

3. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady , and the electricity can be further reduced.Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.

4. Electrical control pressure: accurate and fast to achieve die-cutting pressure adjustment, The pressure is automatic adjusted through the motor to control the four feet by HMI. It is very convenient and accurate.

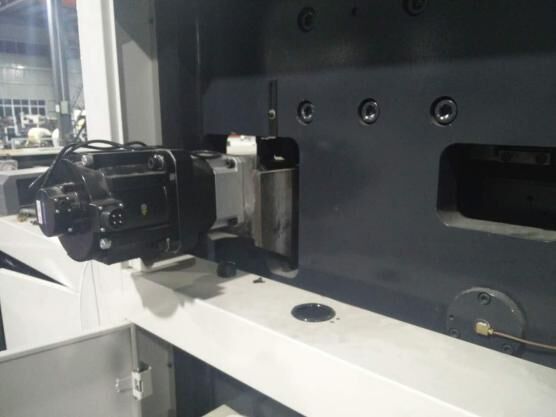

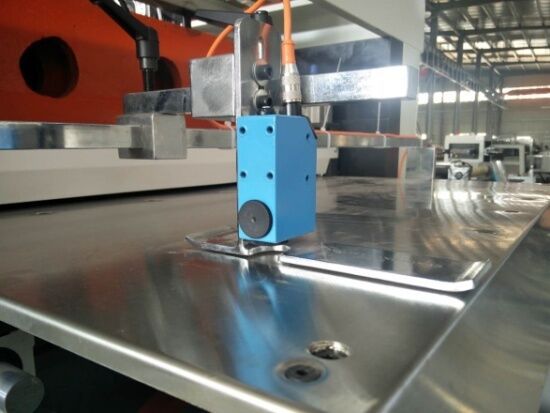

5. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures.  Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.

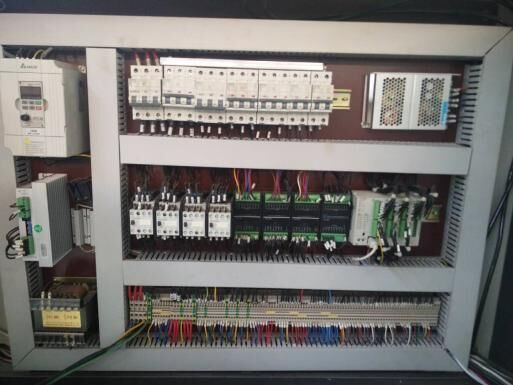

6. Electrical cabinet:  Motor: Frequency converter controls the main motor, with features of low energy and high efficiency.

PLC and HMI:  Screen display the running data and status, all of the parameter can be set through the screen.

Electrical control system:  Adopts micro computer control , encoder angle detect and control , photoelectric chase and detect ,  achieving from paper feeding, convey, die-cutting and delivering process automatic control and detect.

Security devices: Machine alarming when failure happens, and automatic shut down for protection.

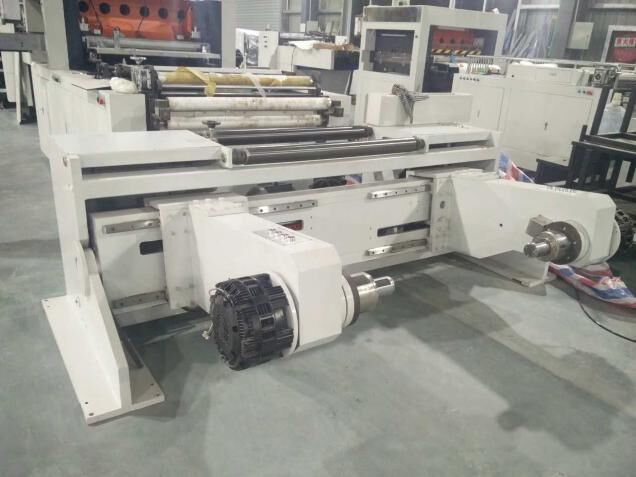

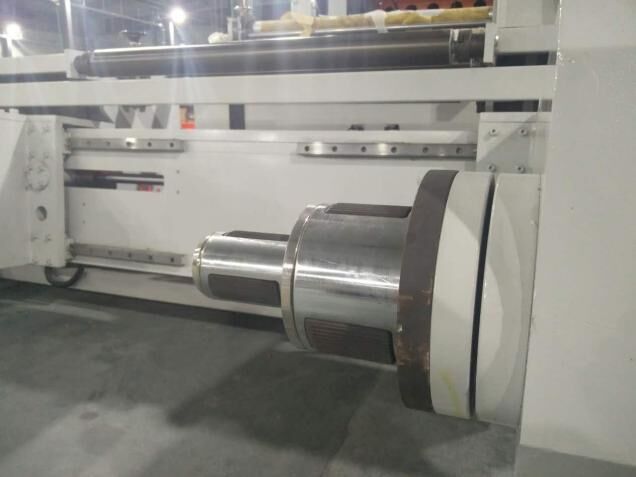

Option. Feeding Unit: Adopts and hydraumatic shaftless, it could support 3’’, 6’’, 12’’. Max roll paper diameter 1.6m.
