Vertical Paper Hamburger box Machine
The Double station Carton Erecting Machine directly three-dimensionally forms the paper by stamping, which can not only hold solid or liquid food, but also eliminates the need to open the lunch box processed by the traditional folder gluer, greatly shortening the packaging of food. Time, to meet the requirements for packaging boxes of fast food such as environmental protection, hygiene, sealing and rapid circulation.
INQUIRY
Product Description
Technical Parameters
Machine Details

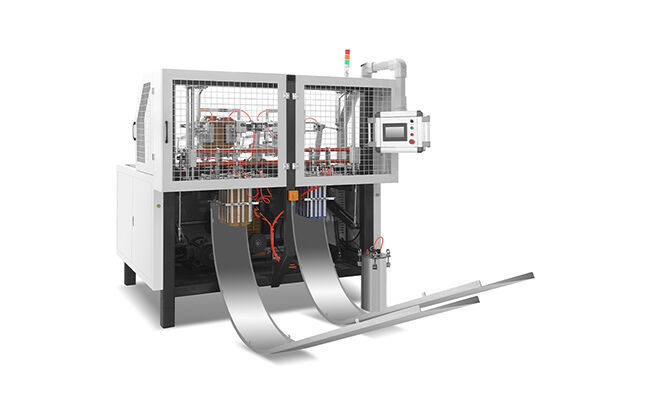

Vertical Paper Hamburger box Machine




Instruction:

The Double station Carton Erecting Machine directly three-dimensionally forms the paper by stamping, which can not only hold solid or liquid food, but also eliminates the need to open the lunch box processed by the traditional folder gluer, greatly shortening the packaging of food. Time, to meet the requirements for packaging boxes of fast food such as environmental protection, hygiene, sealing and rapid circulation. The whole machine complies with "CE" certification, and also has the characteristics of accurate and stable transmission, high production efficiency, and small footprint.


This model is suitable for three-dimensional carton forming, especially carton boxes in the food and fast food industry, such as hamburger boxes, packing boxes and so on. Compared with the ordinary three-dimensional carton machine, the speed is fast, the feeding time is long, the collected products are more, and the labor cost is saved.





                                             Vertical Paper Hamburger box Lunch Box Making Machine     FT-3200

Speed

90pcs/min

Material

200-620gsmCorrugating paper thick:1.6mm

Box size

 Length:   L100-450mm
Degree:5°-45°
Width:B100-600mm
Height:H 15-200mm

Power

6kw

Air requirement

0.5Mpa, 0.4cube/min

Power source

380V  50Hz

Size

2300*2200*2100mm

Weight

2300kg

Machine more details:

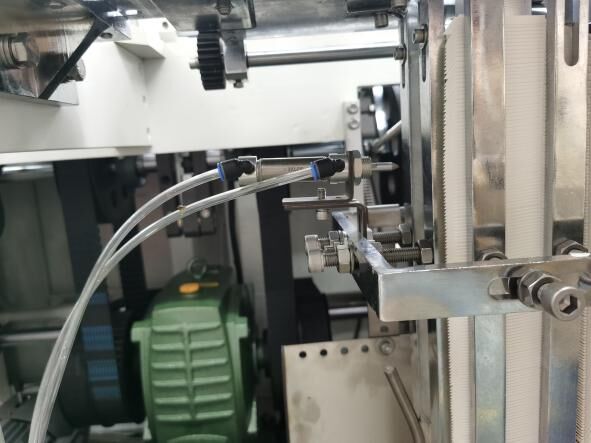

1. Discharging part: the paper is conveyed forward through the control of the cylinder, and the pressure plate is controlled by the pedal to replenish the material to achieve a non-stop state.

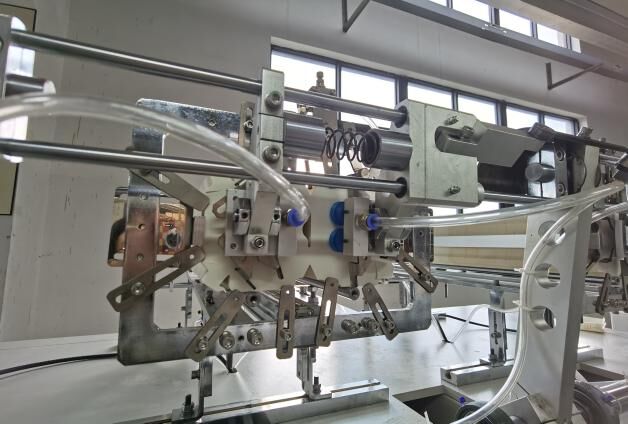

2. Collection Part: The product is compressed and shaped by the mold.

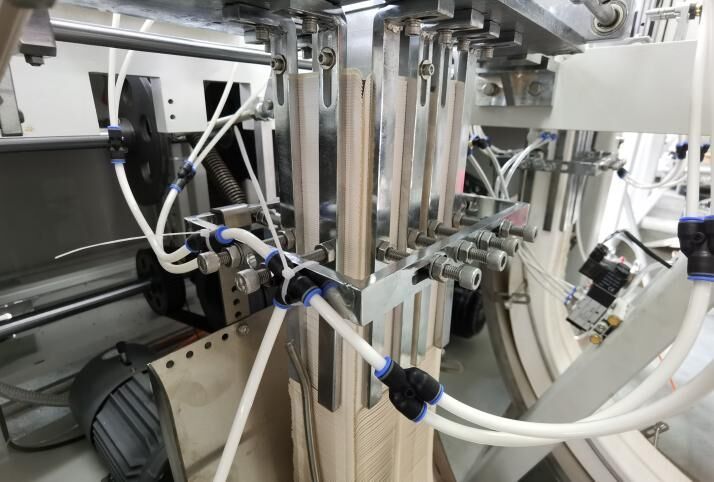

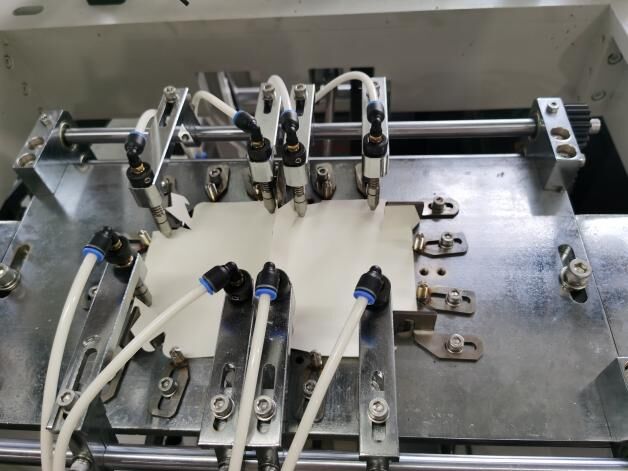

3.Paper suction part: Through the up and down movement of the swing arm, the suction nozzle of the machine sucks the paper into the mold from the discharge place.

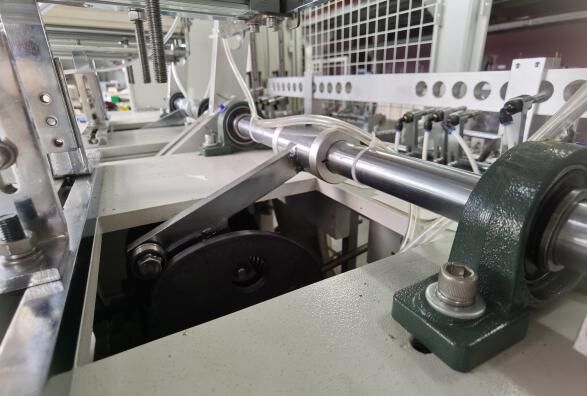

4.Swing arm part: control suction nozzle part suction paper and mold pressing.

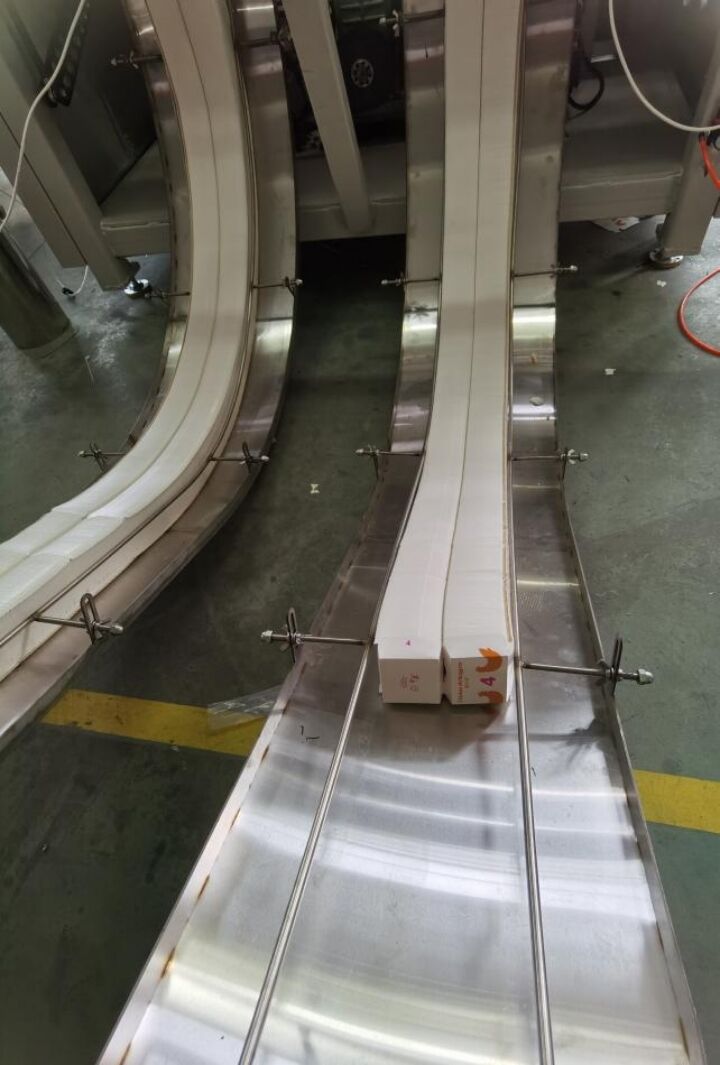

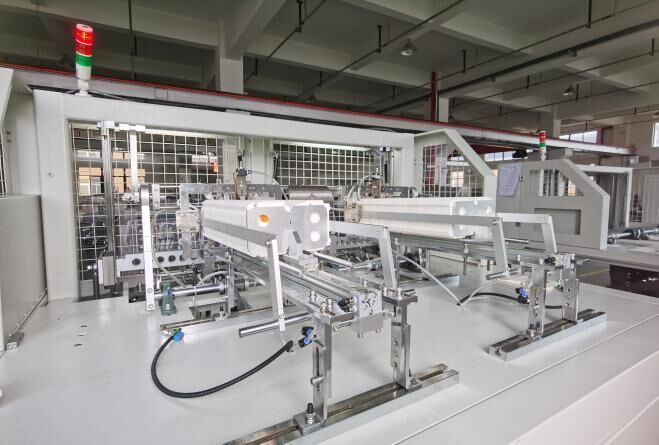

5.Transport track: let the product be transported neatly, the size of the product is fixed by the fixing rods on both sides, and the packaging is more convenient.
